code

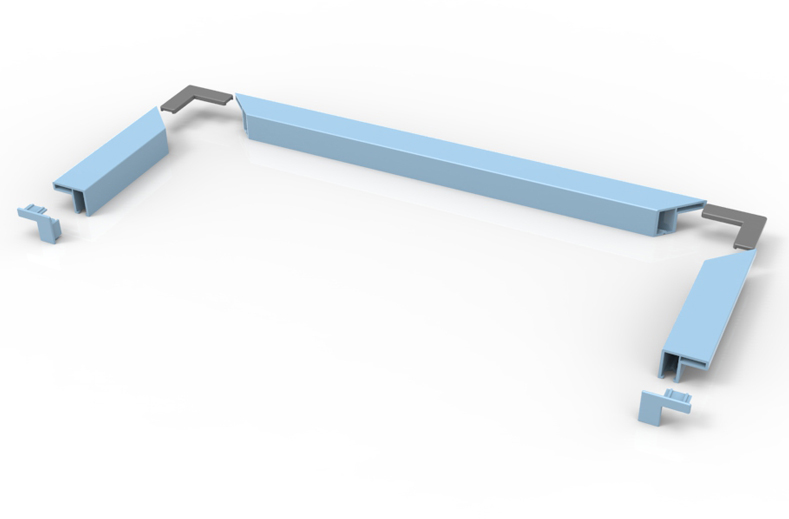

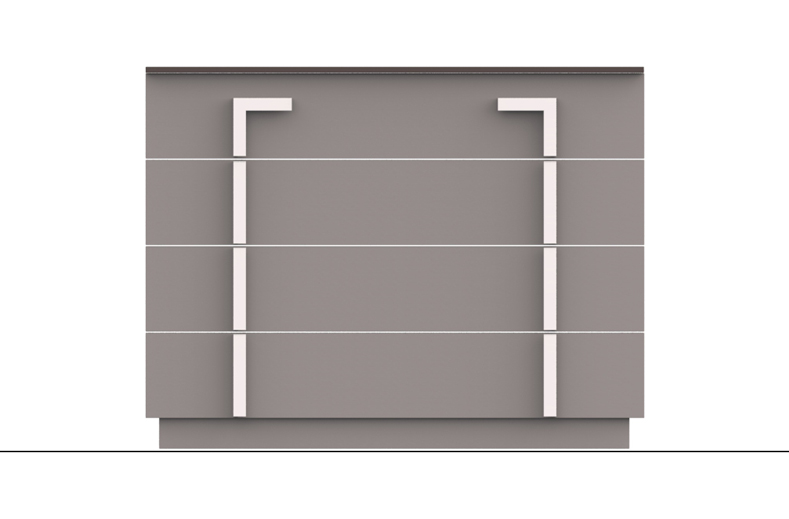

M1563 Handle System

measures

Center Distance

On demand

Width

33 mm

Length

On demand

Height

26 mm

Screwes

Type

Self screwing screw

Diameter

Ø 4

Useful grip

from 7 mm to 15 mm

PDF Print

Product sheet

Product type

Handles

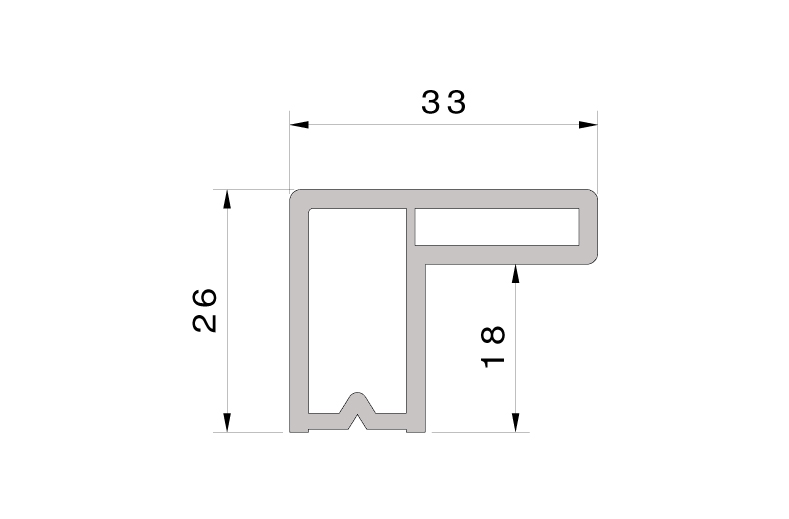

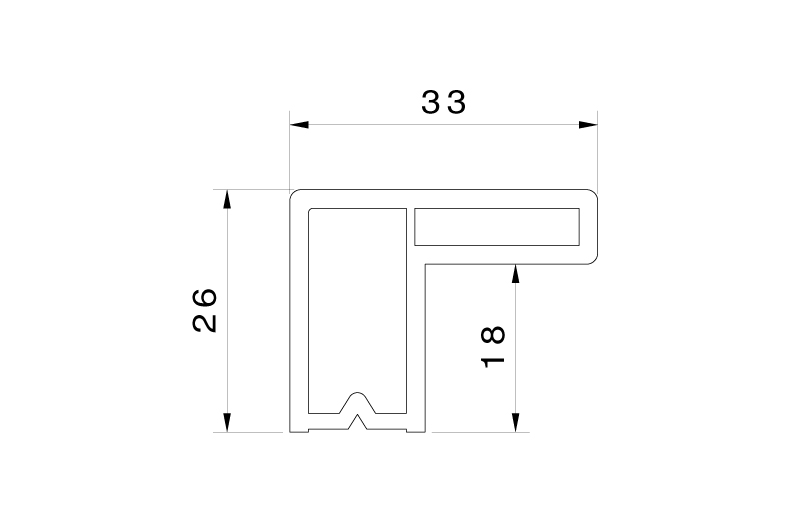

M1563 Handle System - Technical drawing

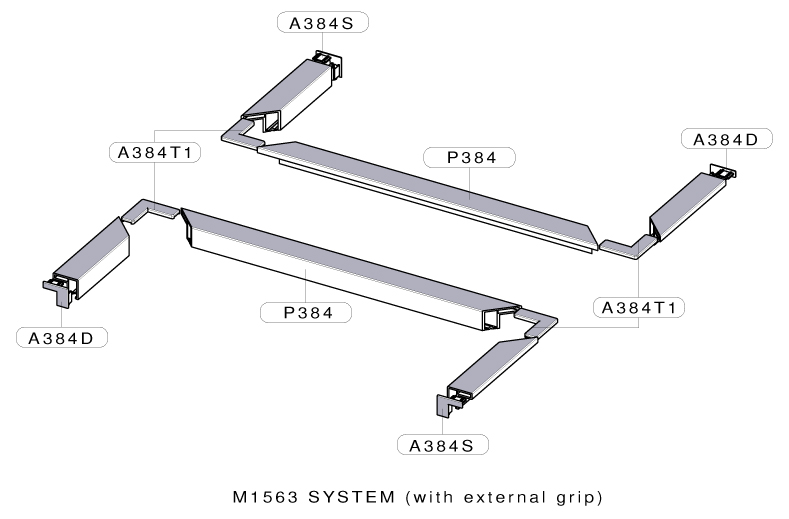

Base
M1563B/D e M1563B/S
M1563B/D e M1563B/S
Finishing - Base

Wood

Lacquered

Bight Chrome

Chrome Mat

Raw Natural

Insert
P384
P384
Finishing - Insert

Wood

Lacquered

Bight Chrome

Chrome Mat

Raw Natural

Angolo
A384T1
A384T1
Finishing - Angolo

Raw Natural
